Double-Speed Chain Conveyor, Instrument Box Assembly Line, MV Switchgear Component Conveyor.

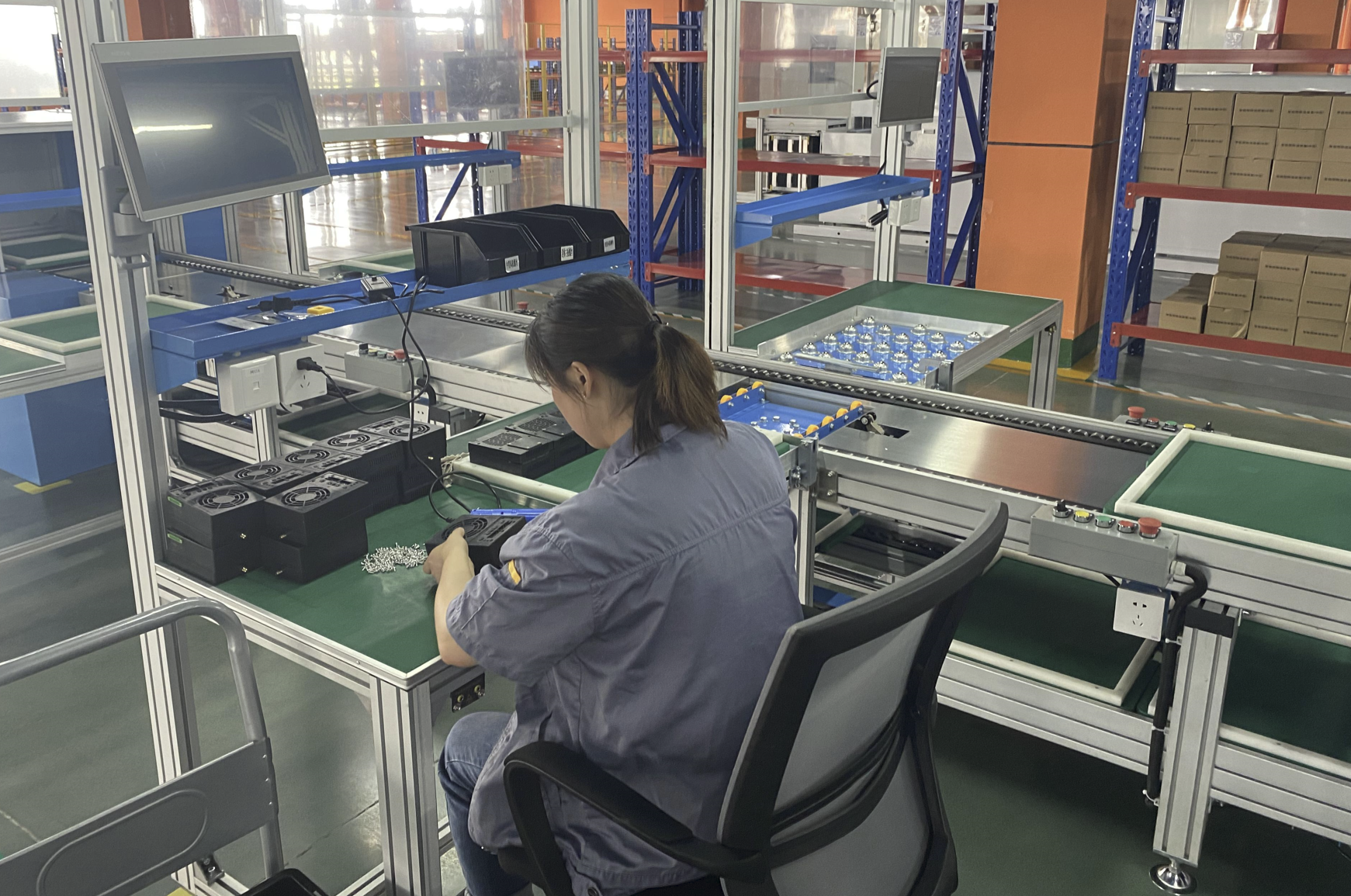

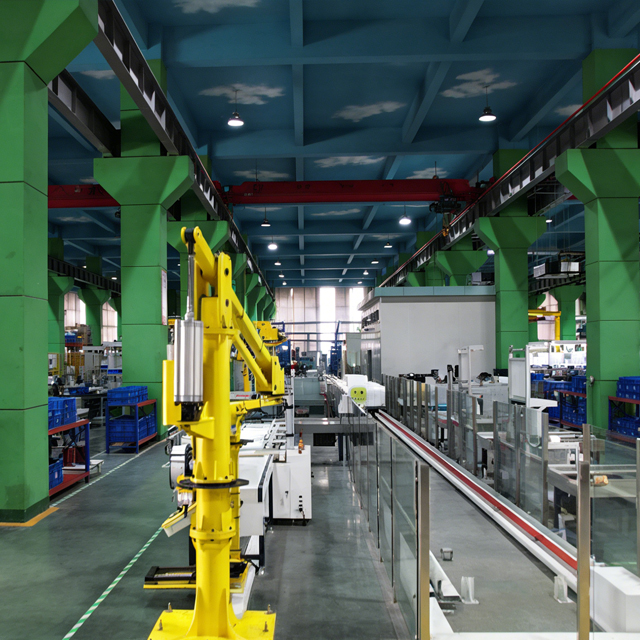

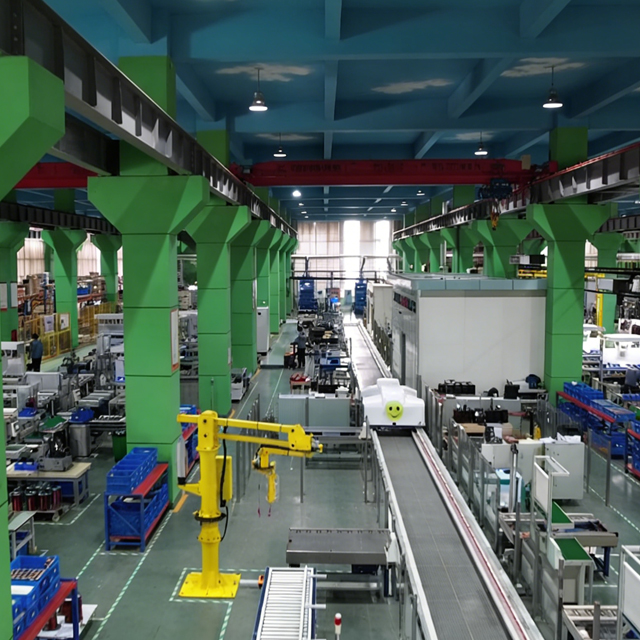

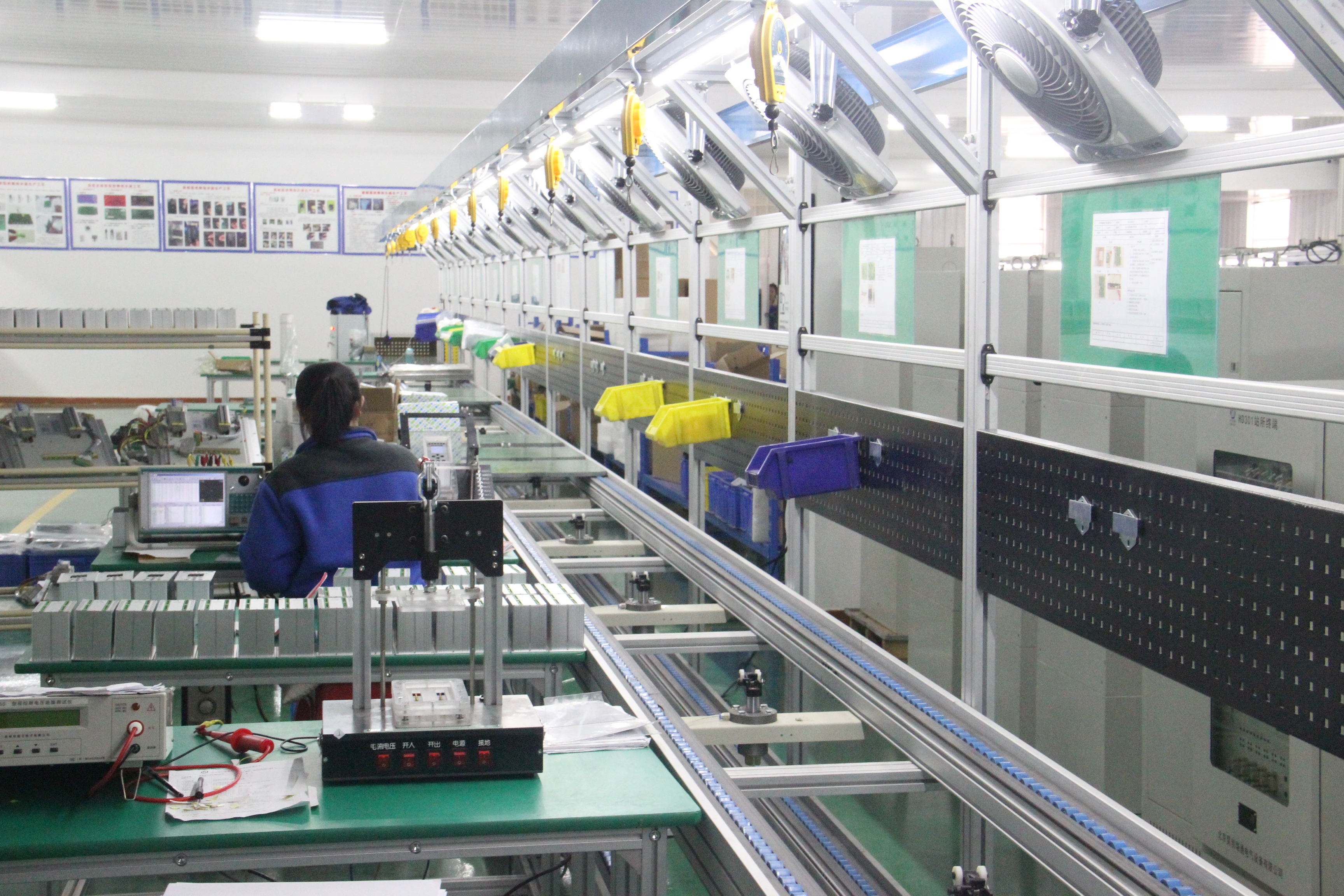

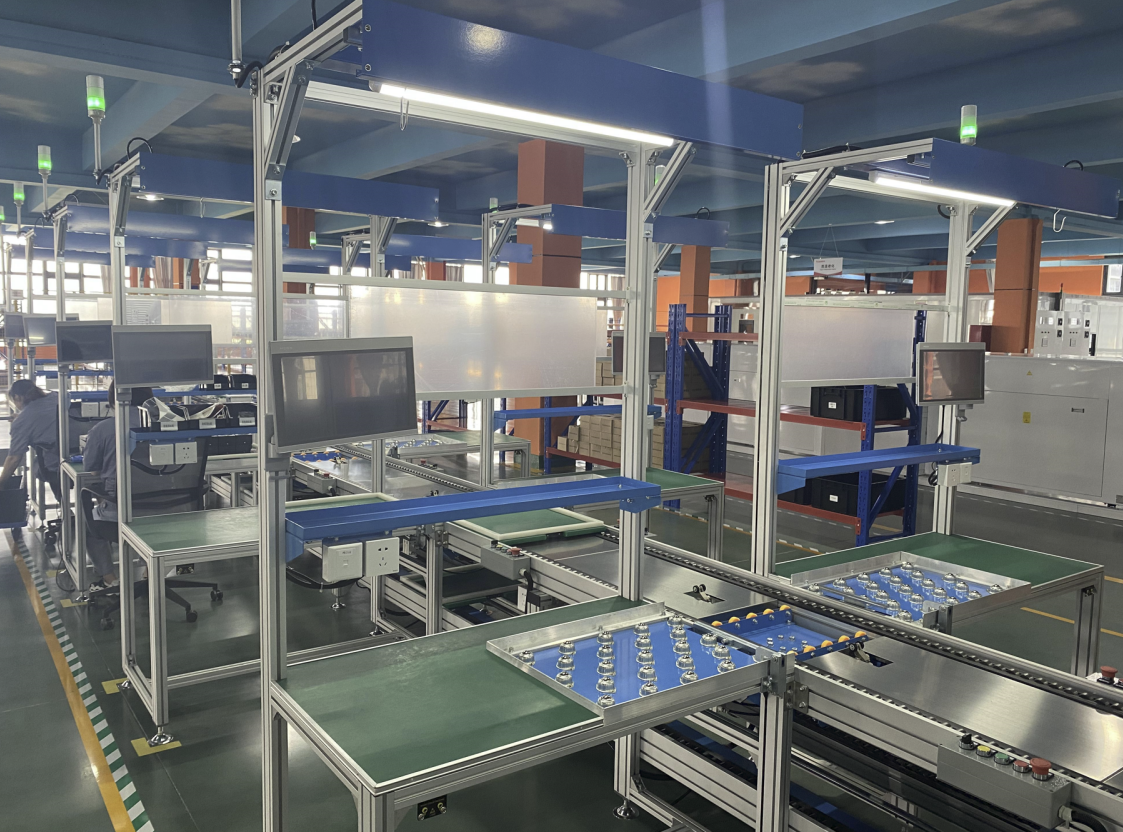

MV Instrument Box Double-Speed Chain Conveyor Line Optimize your instrument box production with our high-efficiency double-speed chain conveyor line. Designed for MV switchgear components, featuring smooth pallet transport, intelligent accumulation, and ESD-safe environments for precision assembly.
Keywords:
MV Instrument Box Double-Speed Chain Conveyor Line
Category:
Production line
Hotline:

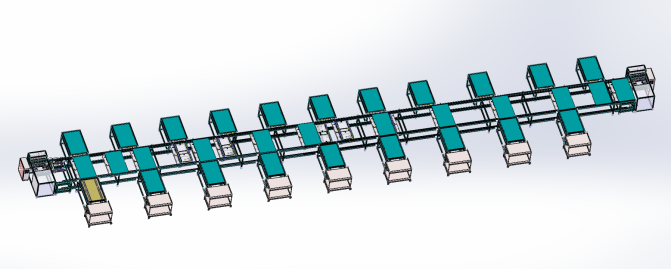

Detailed information
project | accuracy |
1) Diagonal length error of the countertop | < 3 mm |
2) Planarity of the working surface | < 2mm |
3) Height difference between adjacent rollers | < 1 mm |
4) Coaxiality of the roller | <±0.5 mm |
5) Parallelism of adjacent rollers | <±1mm |
6) For the installation of adjacent roller decks, it is required that their guide plates align with each other, ensuring straightness | 3mm |
7) Radial runout of roller surface | 0.5 mm |
8) Straightness of roller surface | 1 mm |
Mainly refer to and implement relevant technical standards and specifications:
A.The electric part adopts AC power supply (operating voltage AC380V) and is equipped with leakage, overcurrent, and overvoltage protection devices. It must not conflict with the leakage, overcurrent, and overvoltage protection devices in the construction area
B. The length of the power cord equipped for this conveyor line must meet the requirements of the construction site, and it is equipped with a dedicated main control box and sub-control boxes.
C. Configure safety interlock functions and emergency stop buttons, which are suitable for personnel operation in emergency situations.
D.The control cabinet of the D conveyor system is provided with a label engraved with operational instructions.
E.The design of the conveyor line must ensure ease of maintenance, including easy troubleshooting, standardization of components, easy replacement of parts, and the provision of spare parts.
F. It is necessary to consider the system's fault detection capability, and set up indicator lights, instruments, sensors, testing devices, visual inspection points, etc.
G.Selection criteria for electrical equipment components: high-quality reduction motors, Delta frequency converters for speed regulation, and Siemens PLCs. The control part uses safe voltage 24V, and the motor 380V is equipped with a reduction gear.
H. Paint color: RAL 7035.
I.The drive mechanism and other equipment of the conveyor are designed for indoor working environments and are subject to rust prevention measures. The product must comply with the standards set out in the Environmental Management System and the Occupational Health and Safety Management System.
J. Party A confirms that the design and manufacturing provided by Party B based on the principles outlined in the technical agreement and schematic drawings shall ensure clear brand identification of materials and accessories. However, this does not limit modifications made during specific construction design due to technical, safety, practical, or other requirements, as long as the quality is not compromised.
