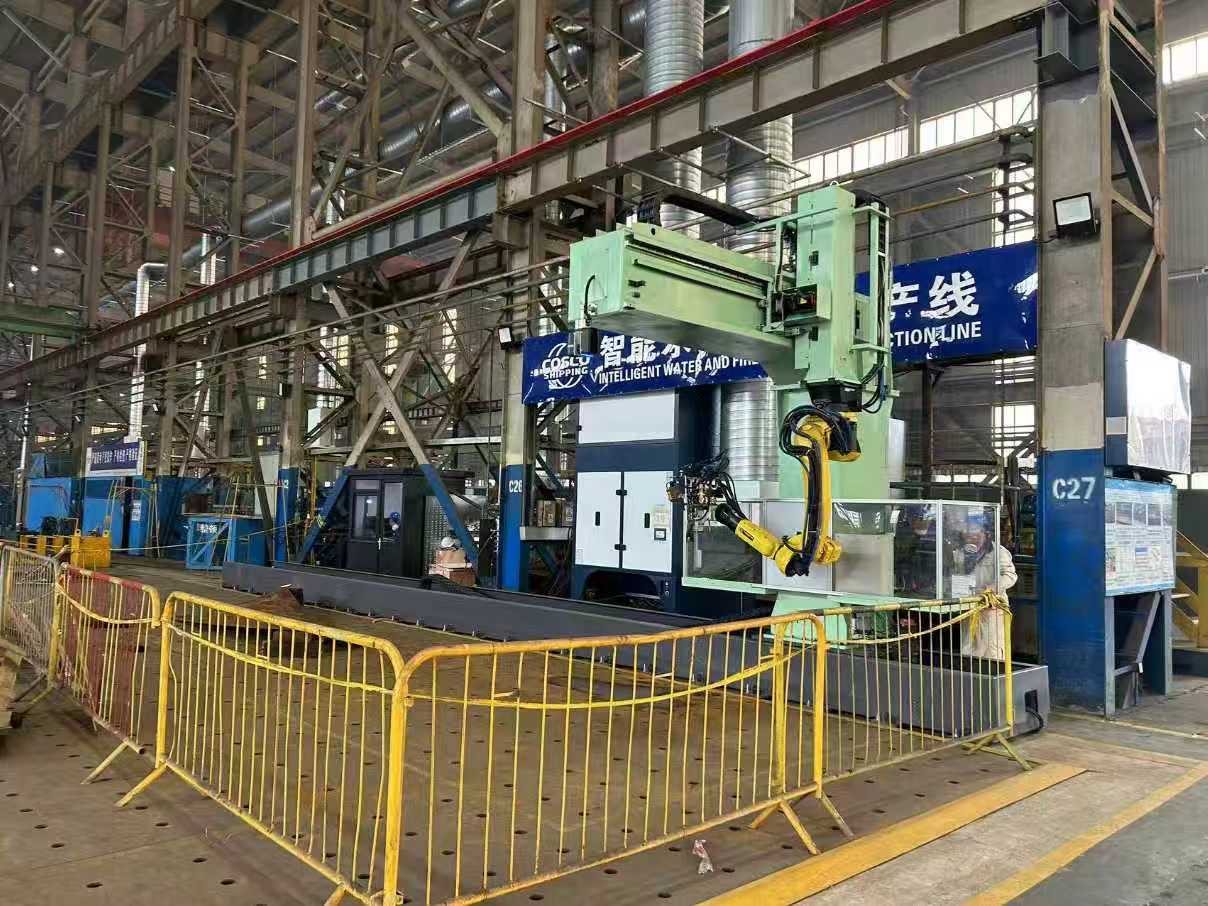

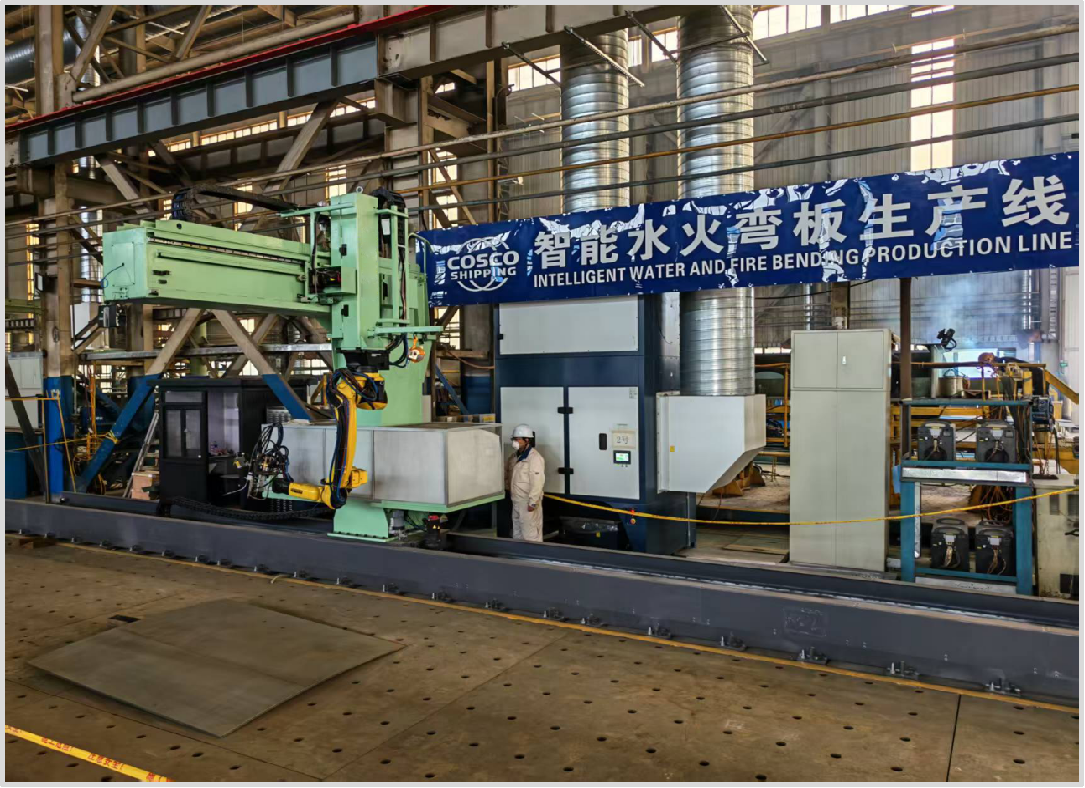

Intelligent Shipbuilding Plate Bending System | Automatic Water-Fire Bending Machine with Point-Cloud Scanning

A revolutionary solution for shipbuilding hull forming. Our Intelligent Plate Bending System replaces traditional manual line heating with high-precision point-cloud scanning and automated CNC water-fire control. Engineered to handle large-scale complex curved plates, it delivers superior forming accuracy and significantly shortens the shipbuilding cycle by reducing dependency on highly skilled labor.

Keywords:

Shipbuilding Plate Bending, Water-Fire Bending Machine, Line Heating Automation, Steel Plate Forming System, Point Cloud Scanning Bending, Automatic Hull Plate Forming

Category:

Production line

Hotline:

+86 15734160869

Message

Detailed information

From Manual Craftsmanship to Digitized Precision. Traditional hull plate bending is a bottleneck in shipbuilding.

Our system digitizes this process, bringing Industry 4.0 efficiency to the shipyard.

INTELLIGENT PLATE BENDING SYSTEM.png

Core Technological Advantages:

Automatic Point-Cloud Scanning: High-speed 3D scanners capture the plate's geometry in real-time, generating precise heating paths based on digital design models.
CNC Water-Fire Control: Intelligent control of flame intensity and water cooling ensures exact thermal shrinkage, achieving complex double-curvature forms with millimetric precision.
Skill-Independent Operation: Boasting a user-friendly interface, the system allows standard operators to achieve results previously only possible by veteran "Line Heating" masters.

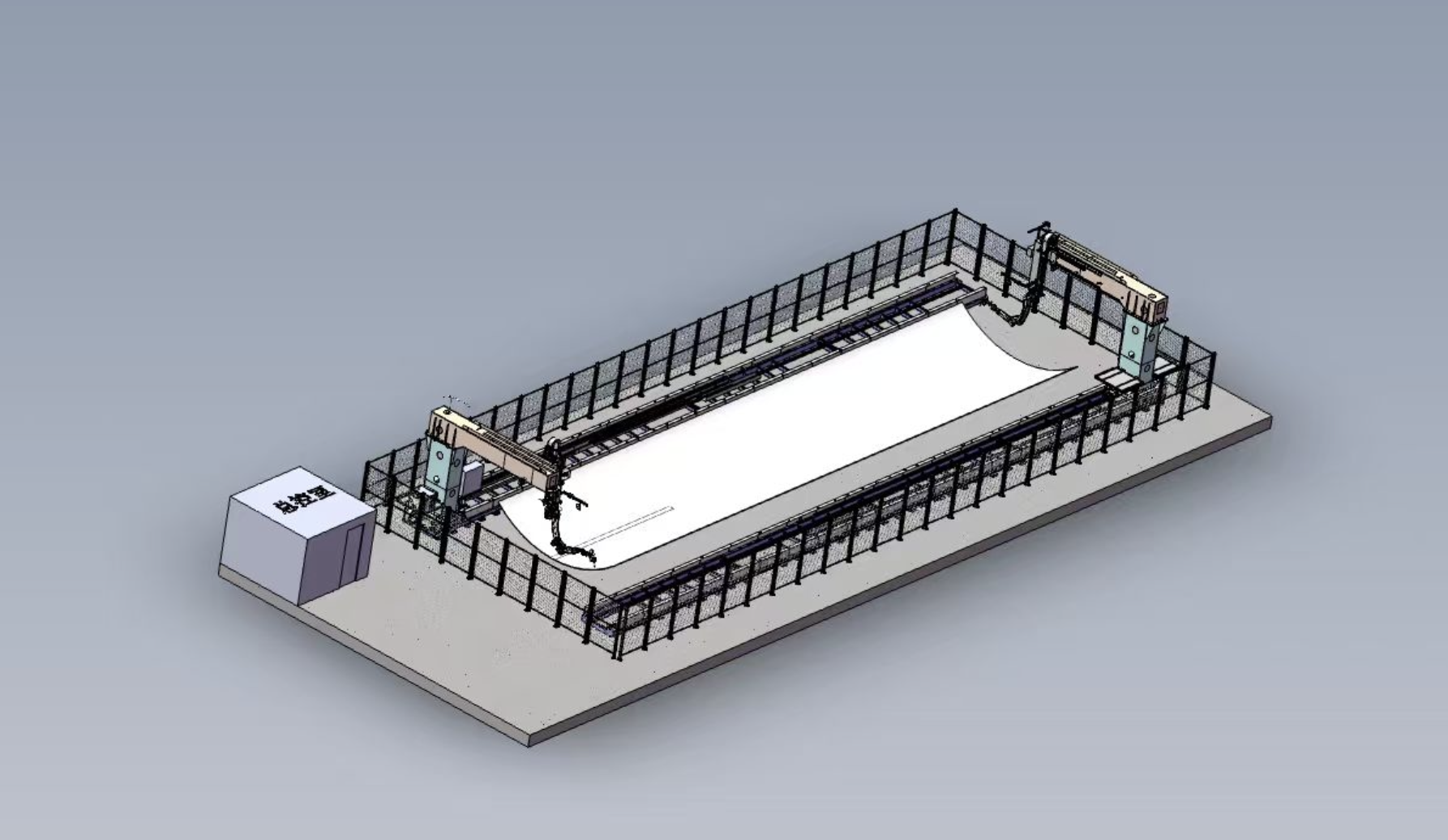

Large-Scale Gantry Design: Built for heavy-duty shipyard environments, the robust gantry structure supports massive steel plates with 24/7 stable performance.

Strategic Impact:

Reduced Labor Costs: Replaces intensive manual labor and minimizes human error.
Faster Turnaround: Accelerates the hull construction process, allowing for more concurrent projects.
Consistent Quality: Ensures every plate meets stringent structural and aerodynamic requirements.
