High-Precision CNC Busbar Bending Machine | Automated Copper Bar Punching & Bending Center
Upgrade your copper fabrication with our Industry 4.0 compliant CNC busbar bending machine. Featuring a ±0.1mm feeding accuracy and an advanced PLC + upper computer control system, this machine automates complex bending and punching tasks. With a versatile ±90° bending range and automatic tool switching, it delivers superior precision and efficiency for high-end switchgear and power distribution manufacturing.
Keywords:
CNC Busbar Bending Machine, Copper Bar Bending, Automated Busbar Processing, Busbar Punching and Bending, Switchgear Manufacturing Equipment, High Precision Busbar Machine
Category:
Smart device
Hotline:
Detailed information
Mastering Precision in Busbar Fabrication. Eliminate the guesswork and manual labor of traditional copper processing. Our CNC Busbar Bending Machine brings laboratory-grade precision to your factory floor, ensuring every bend is perfect and every hole is exact.
Core Technical Advantages:
Ultra-High Feeding Accuracy: Achieves a feeding tolerance of ±0.1mm, ensuring that complex multi-bend busbars fit perfectly into switchgear frames without manual adjustment.
Intelligent Dual-Control System: Adopts a robust PLC + Upper Computer architecture, providing a stable, user-friendly interface for complex programming and real-time monitoring.
Versatile Bending Capabilities: Supports a wide bending range of ±90°, allowing for the fabrication of diverse busbar shapes—from simple L-bends to complex offset geometries.
Automatic Multi-Punch Integration: Equipped with multiple punch heads that automatically switch modes, reducing tool changeover time and allowing for integrated punching and bending in one setup.
High-Stability Mechanical Design: The long-track feeding system and heavy-duty clamping ensure the workpiece remains stable even during high-speed operations.
Why Your Workshop Needs It:
Zero-Defect Quality:Perfect consistency across thousands of units, essential for grid-scale energy projects.
By combining multiple processing steps and reducing labor by 75%, the machine typically pays for itself within the first year.
Global Standard Readiness: Produce busbars that meet the most stringent IEC and IEEE insulation and structural requirements.
Equipment Overview

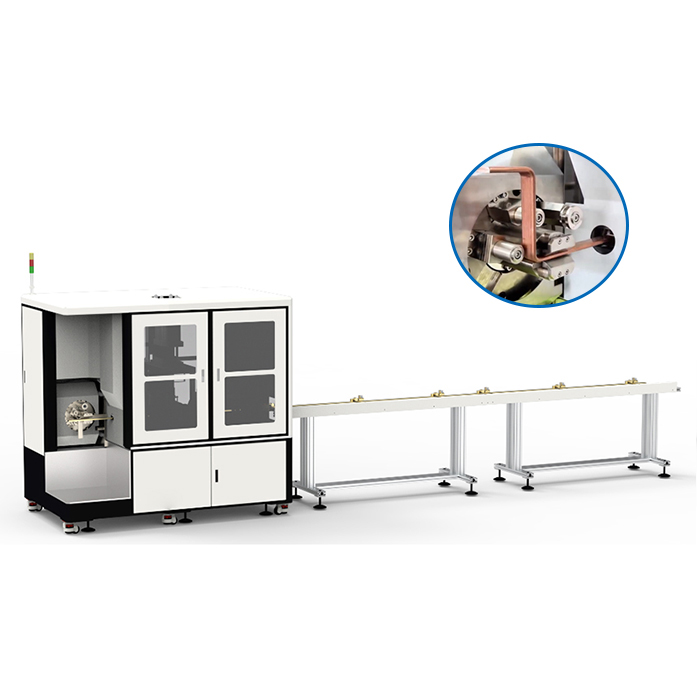

1. Copper bar punching and bending machine is an automated metal processing equipment designed specifically for industries such as power equipment, electrical manufacturing, and new energy. It is mainly used for punching, cutting, and bending copper bars, and is suitable for the production of conductive components in products such as transformers and distribution cabinets.
2. The feeding system adopts servo and screw clamping with a feedingaccuracy of ± 0.1mm, supporting automatic feeding of materials with a length of 0.5-6m, a width of 10-40mm,10-100mm or 10-200mm and a thickness of 2-10mm. The clamping mechanism adopts pneumatic bidirectional centering clamping to ensure smooth feeding.

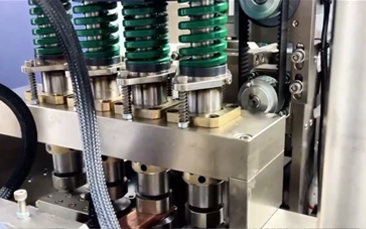

3. The punching system adopts a 15T,30T 50T gas-liquid booster cylinder, which improves the punching speed. By using multiple punch heads to automatically switch molds, four ,eight types of punch heads can be automatically switched without stopping the machine, greatly improving the compatibility of the equipment.

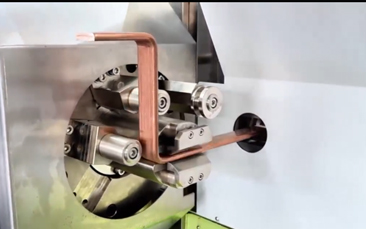

4. The bending system adopts a multi axis linkage mechanical structure, with a bending range of ± 90 °, which can be automatically changed according to the work order.
5. The CNC system adopts PLC+upper computer, supporting digital or graphical programming of work orders.
