Product Overview

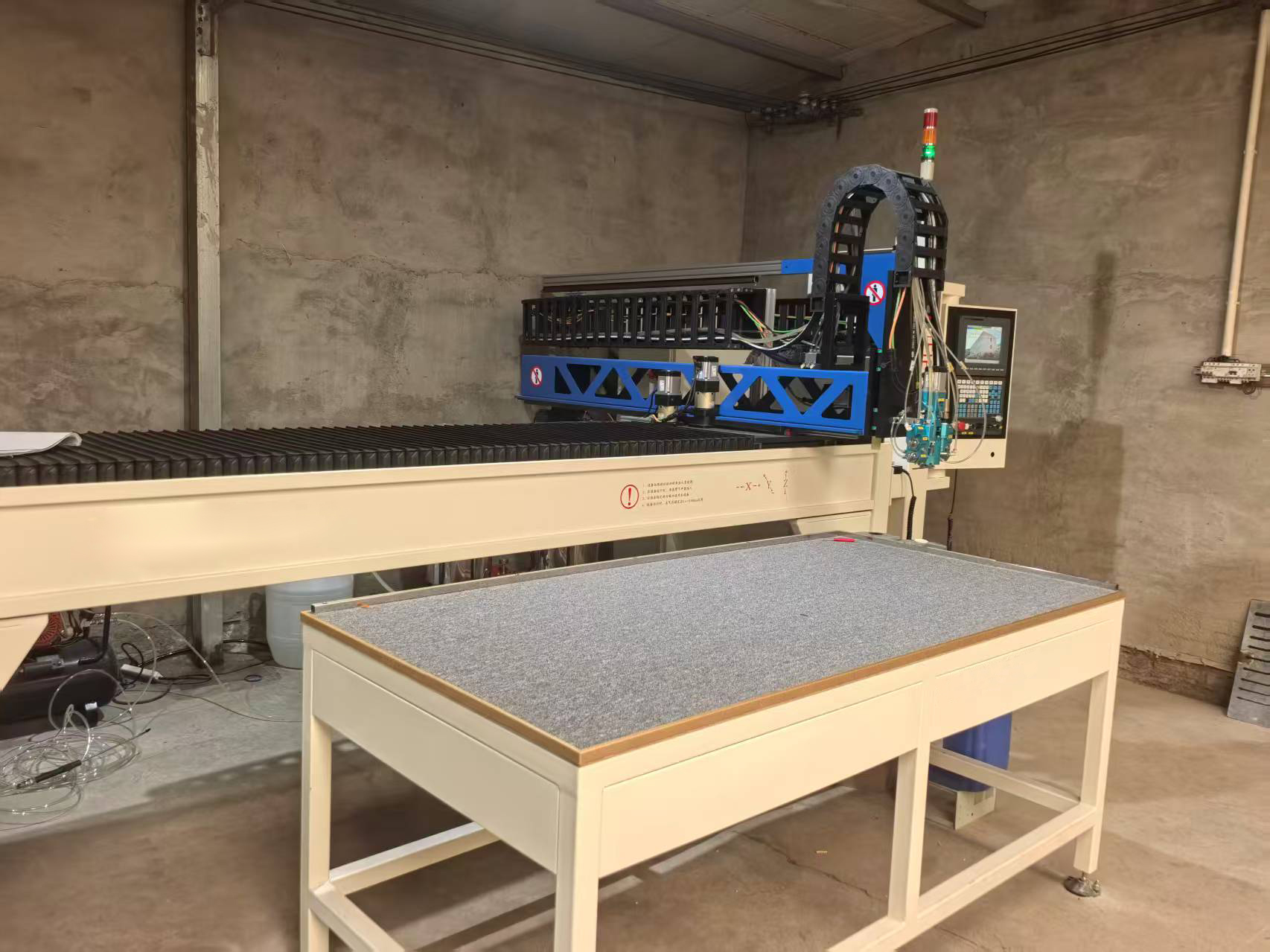

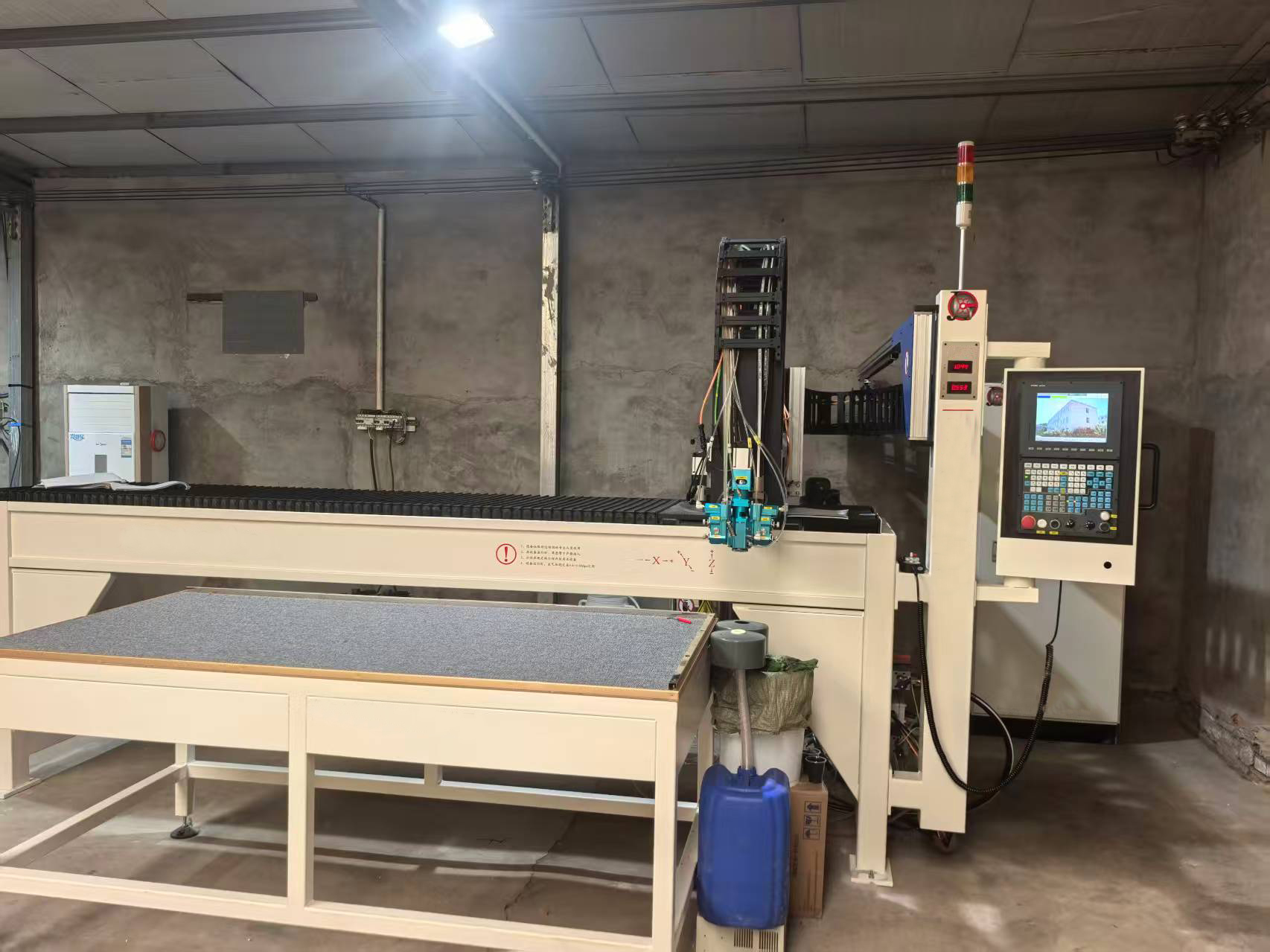

The Automatic FIPFG PU Foam Gasket Making Machine is designed for automated production of seamless polyurethane foam gaskets directly on workpieces. The system combines precise material dosing, automatic mixing and CNC-controlled dispensing to form continuous sealing gaskets according to programmed patterns.
The machine supports 2-component polyurethane, silicone and other liquid materials with similar properties, and can process both 2D and 3D gasket patterns. Gasket width can be customized from 5 to 30 mm, making the system suitable for different sealing requirements.

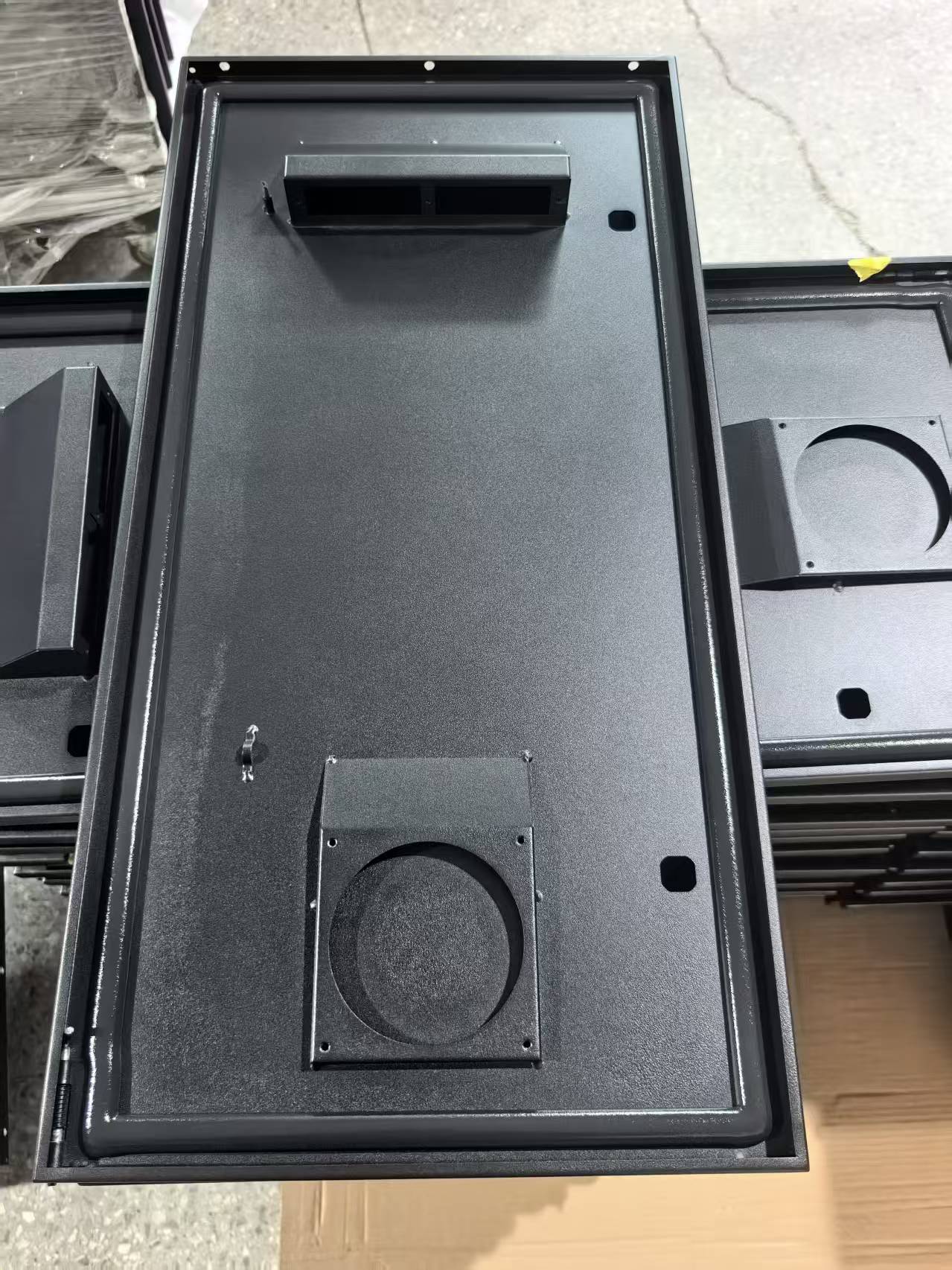

For electrical cabinets and industrial enclosures, the process eliminates many manual operations such as mold placement, cutting and adhesive application, helping manufacturers improve consistency, reduce labor dependency and simplify gasket production.
Key Features
● Automatic Two-Component Mixing
The machine automatically mixes two liquid components according to the programmed mixing ratio before dispensing.
The mixing ratio can be adjusted from 1:10 to 10:1, according to material and application requirements.
● High-Precision Dosing
The dosing system uses high-precision metering pumps and servo-driven control to provide stable and accurate material dispensing.
The documented system supports dosing from 0.5–5 g/s with filling accuracy of 0.1 g/s.
● Seamless Gasket Formation

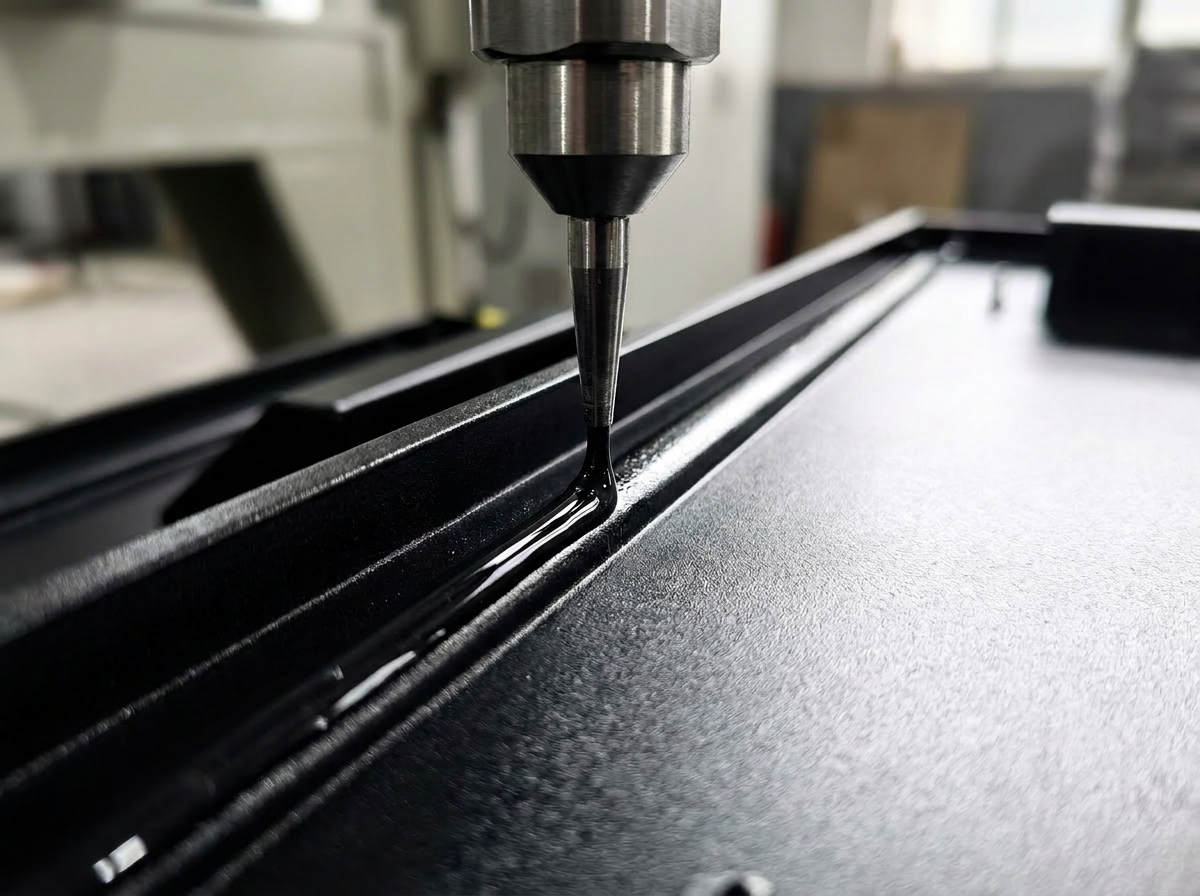

The PU foam gasket is formed directly on the workpiece without joints or cut points, creating a continuous sealing line with a smooth surface.
● 2D & 3D CNC Processing
The CNC system supports both X-Y 2D processing and X-Y-Z 3D processing, allowing the machine to handle different workpiece geometries and gasket patterns.
● Flexible Pattern Programming
Operators can create patterns using built-in geometric shapes, import CAD files, use G-code or make manual adjustments.
Supported examples include straight lines, L-shapes, semicircles, squares, rectangles and circles.
●Automatic Mixing Head Cleaning
The mixing head uses a high-pressure water rinsing system for cleaning. The documented design also includes anti-sticking treatment and an anti-dripping nozzle system to simplify maintenance.
Technical Specifications
| Item | Specification |
|---|---|
| Machine Type | FIPFG PU Foam Gasket Machine |
| Working Stroke | 2400 × 1200 × 200 mm |
| Gasket Width | 5–30 mm |
| Gluing Precision | 0.01 mm |
| Working Speed | 0–12 m/min |
| Maximum Speed | 30 m/min |
| Metering Accuracy | ±0.02% |
| Repeat Positioning Accuracy | ±0.03 mm |
| Dosing & Metering | 0.5–5 g/s |
| Filling Accuracy | 0.1 g/s |
| Mixing Ratio | 1:10–10:1 Adjustable |
| Mixing Speed | 0–3000 rpm |
| Operation Pressure | 0–2 MPa |
| Power | 4.5 kW |
| Frequency | 50 / 60 Hz |
| Voltage | 3 × 380 V |
| Control | CNC |
| Processing | 2D / 3D |
| Material | 2-Component PU / Silicone |
| Raw Material Tanks | 40 L × 2 |
