Automatic Metal Nameplate Manufacturing Line for Precision Etching, Coloring and Laser Cutting
The Metal Nameplate Etching Production Line is an integrated manufacturing solution designed for the automated production of high-quality metal nameplates, equipment labels and identification plates.The complete process integrates film printing, coating, plate exposure, developing, precision etching, coloring and laser cutting into one streamlined production workflow. By combining multiple processing stages, the production line helps manufacturers achieve consistent etching depth, sharp graphic details and uniform surface finishing while reducing manual handling between processes.The system is suitable for customized metal nameplates used on electrical cabinets, industrial equipment, control panels, machinery and other products requiring durable and professional identification labels.
Keywords:
Category:
Smart device
Hotline:
Detailed information
Product Overview
The Metal Nameplate Etching Production Line is an integrated manufacturing solution designed for the automated production of high-quality metal nameplates, equipment labels and identification plates.The complete process integrates film printing, coating, plate exposure, developing, precision etching, coloring and laser cutting into one streamlined production workflow.
By combining multiple processing stages, the production line helps manufacturers achieve consistent etching depth, sharp graphic details and uniform surface finishing while reducing manual handling between processes.The system is suitable for customized metal nameplates used on electrical cabinets, industrial equipment, control panels, machinery and other products requiring durable and professional identification labels.
Complete Production Process
01 — Film Printing: Create precise artwork and processing films for nameplate production.
02 — Coating: Apply a uniform photosensitive coating to the metal plate for subsequent exposure and etching.
03 — Developing: Develop the exposed plate to accurately reveal the required processing graphics.
04 — High-Precision Etching: Precisely etch the exposed metal surface to create clear text, patterns and recessed details.
05 — Coloring: Inject or apply color into the etched grooves to enhance visual contrast and product identification.
06 — Laser Cutting: Precisely cut the finished nameplate into the required shape and dimensions.

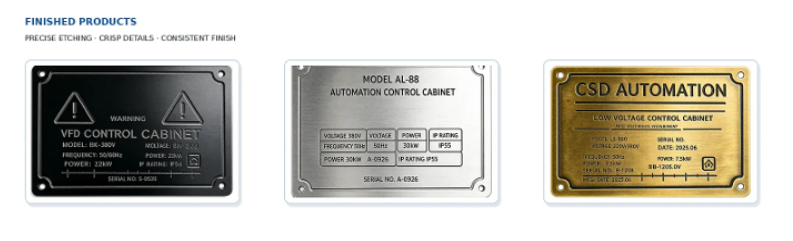

07 — Finished Nameplate: Obtain a clean, durable and professionally finished metal nameplate ready for assembly.
Key Technologies
●Precision Film Printing：High-resolution film printing provides accurate graphics and patterns for subsequent exposure and etching processes.
●Uniform Coating：The coating process prepares the metal surface for controlled photo exposure and precise pattern development.
●High-Precision Developing：The developing process reveals the required graphics with clear edges and accurate details.
●Precision Metal Etching：Controlled chemical etching creates recessed text, logos, patterns and other identification details on the metal surface.
●Professional Coloring：Coloring fills the etched areas to create strong visual contrast and improve nameplate readability.
●Laser Cutting：Laser cutting provides precise contour processing for customized nameplate shapes and dimensions.
