Robotic Aluminum Die Casting Grinding and Deburring Workstation
Robot Polishing Workstation
Keywords:
robotic grinding workstation • robotic deburring machine • aluminum die casting deburring • aluminum casting polishing machine • robot polishing workstation • automated grinding and deburring system • robotic finishing machine for aluminum castings
Category:
Robot system
Hotline:
Detailed information
CSD Auto’s robotic grinding and deburring workstation is designed for automated surface grinding, mold-line deburring, edge treatment and polishing of aluminum die casting parts. By combining robotic handling, dedicated tooling, abrasive belt grinding and spindle-based finishing, the system helps manufacturers improve process consistency, reduce repetitive manual work and create a more organized finishing operation.
1.Robotic Part HandlingAutomated loading, transfer, flipping and unloading for a more consistent polishing workflow.
2.Multi-Process Finishing：Support large-surface grinding, mold-line deburring, edge treatment and polishing in one coordinated workstation.
3.Flexible Workpiece Processing：The workstation can be configured for different part sizes, shapes, clamping positions and processing requirements.
process flow
1.Part Loading：The operator loads the aluminum die casting parts into the positioning or fixture tray.

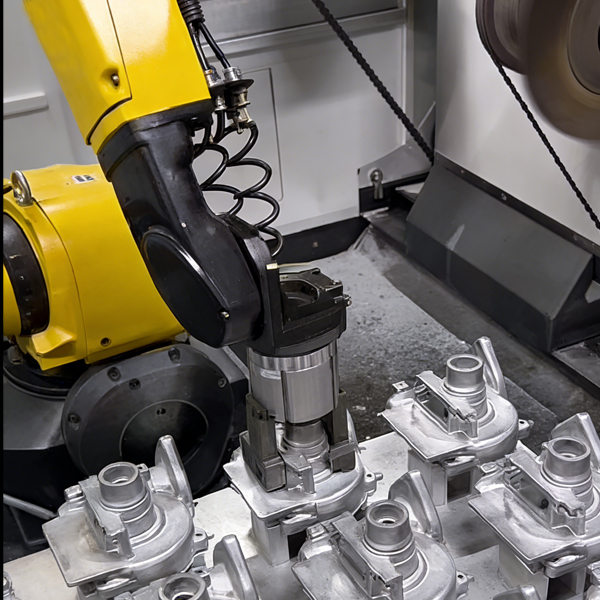

2.Robotic Pick-Up：The robot identifies or retrieves the workpiece from the fixture tray and transfers it to the processing position.

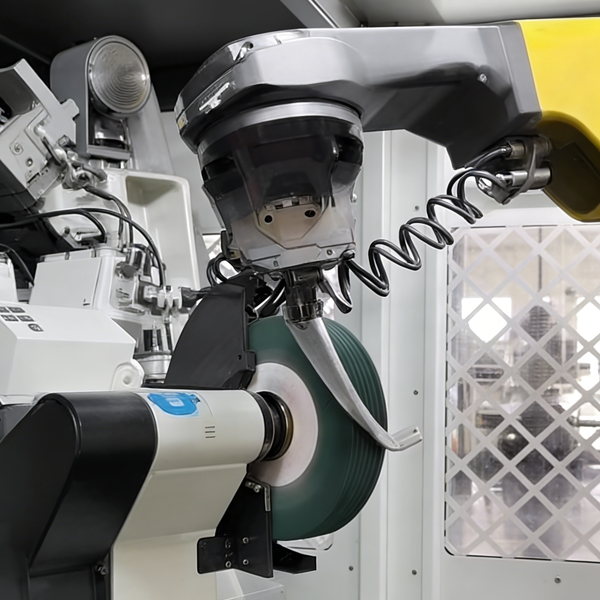

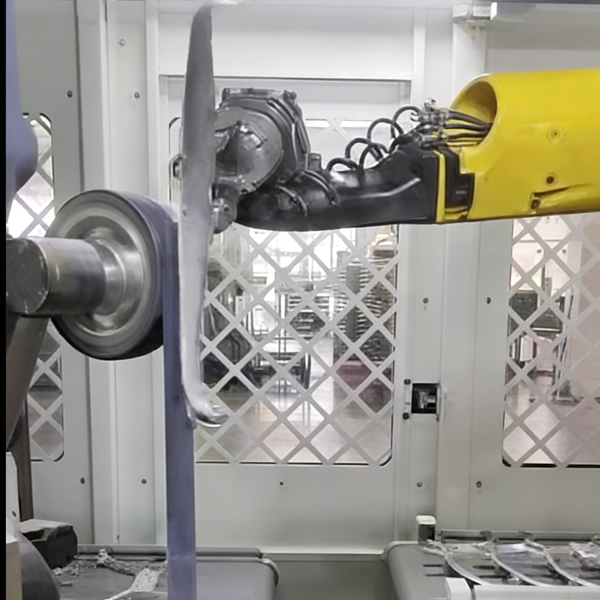

3.Surface Grinding and Polishing：The abrasive belt machine performs large-surface grinding and polishing according to the programmed processing path.
4.Mold-Line Deburring：The radial floating electric spindle supports deburring along mold lines and other selected areas.
5.Edge Treatment and Finishing：The rigid spindle can be equipped with a milling cutter, wire brush or other suitable tool for edge treatment and finishing.
6.Workpiece Flipping：For parts requiring two-sided processing, the robot places the workpiece on the flipping transfer table, changes the gripping position and continues the second-side operation.
7.Finished-Part Unloading：After processing, the robot transfers the finished part to the designated unloading or collection position.
Technical Specifications
| Specification | Details |
|---|---|
| Application | Metal Surface Finishing |
| Payload | 40 kg |
| Working Radius | 2550 mm |
| Accuracy | ±0.06 mm |
| Control System | Siemens PLC |
| Workpiece Material | Steel / Metal / Stainless Steel |
| Operation Mode | Continuous Operation |
| Industry | Manufacturing / Automotive / Metal Processing |
Certifications & Quality Assurance
SGS Product Testing Certificate
CE Compliance Certificate
Product Quality Inspection Reports
Product Performance Testing Reports
Manufacturing Quality Control Documentation
FAQ
1.How can I confirm if your product fits my vehicle or application?
A: Please provide your vehicle model, OEM number, product specifications, or application requirements. Our professional team will help confirm product compatibility and recommend the most suitable solution to meet your needs.
2.What quality control measures do you have?
A: CSD Auto follows strict quality control procedures throughout the entire production process, including material inspection, manufacturing process control, and final product testing to ensure product reliability and consistent performance.
3.Do you support customized products?
A: Yes. We provide customized solutions based on customer requirements, including product specifications, design adjustments, materials, packaging, and OEM/ODM cooperation.
4.How do you guarantee product quality consistency for large orders?
A: We maintain consistent product quality through strict production management, standardized processes, supplier control, and inspection procedures before shipment. Our goal is to provide stable quality for long-term business cooperation.
5.Can you support small trial orders before bulk purchasing?
A: Yes. We understand that customers need to evaluate product performance before large orders. Trial orders and sample evaluation can be discussed according to product requirements.
